Name: Electro-Voice EVOLVE 50M Portable 1000W Bluetooth-Enabled Subwoofer (White) F.01U.384.342
SKU: 707150

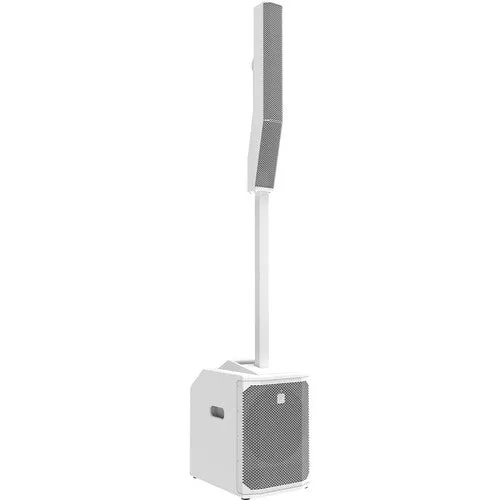

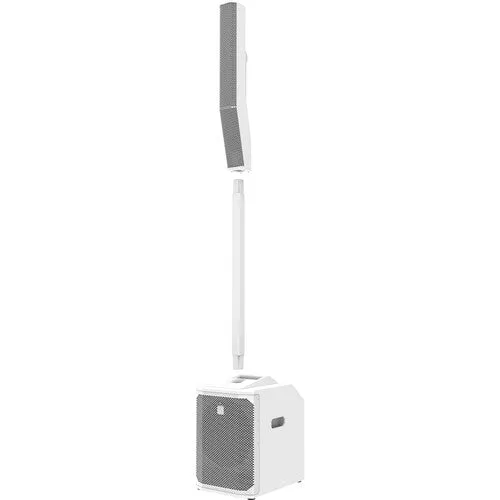

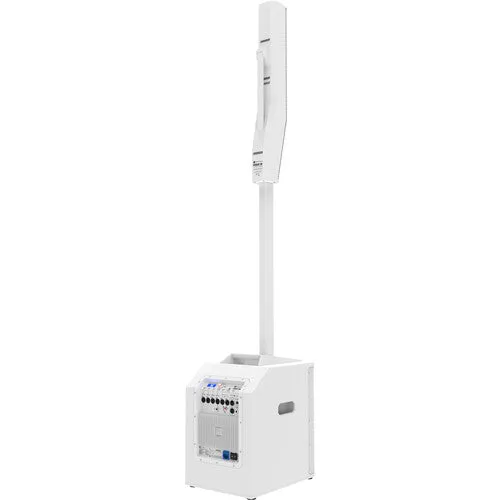

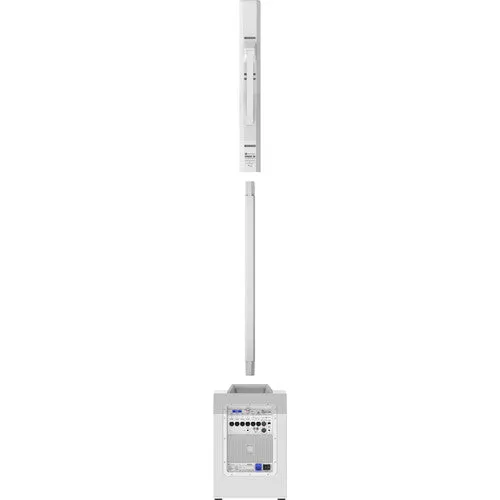

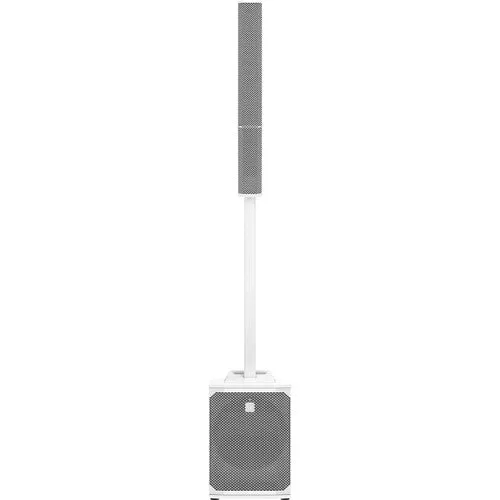

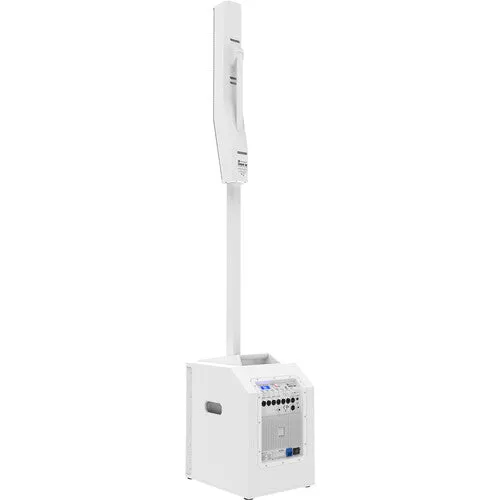

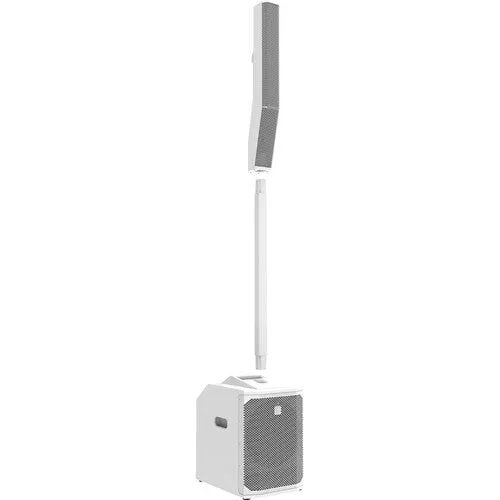

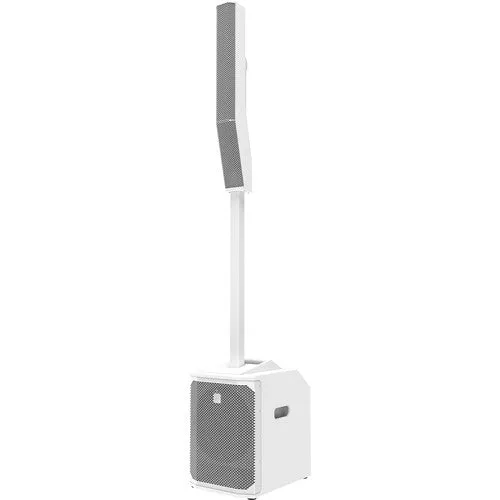

The white Electro-Voice EVOLVE 50M Portable 1000W Bluetooth-Enabled Subwoofer is part of the EVOLVE 50M portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and a column array full-range speaker. The powered subwoofer utilizes a 12" driver and is powered by the integrated 1000W (500W to subwoofer) amplifier, which combines with the column array to provide a frequency response of 43 Hz to 20 kHz with a maximum SPL output of 127 dB.

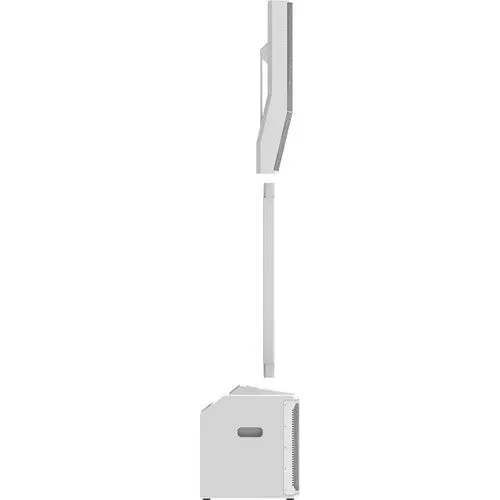

System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate port on top of the subwoofer, then place the column speaker array on the pole. You don't have to run cables between the sub and speaker array; audio connectivity between them is made via internal cabling in the mounting pole. The EVOLVE 50M subwoofer features an advanced 8-channel mixer with professional grade mic preamps and mix functions. High-resolution, low-latency Bluetooth audio streaming ensures professional-quality results for music playback or accompaniment.

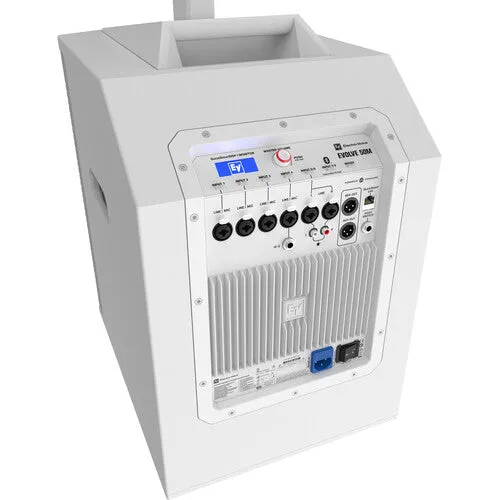

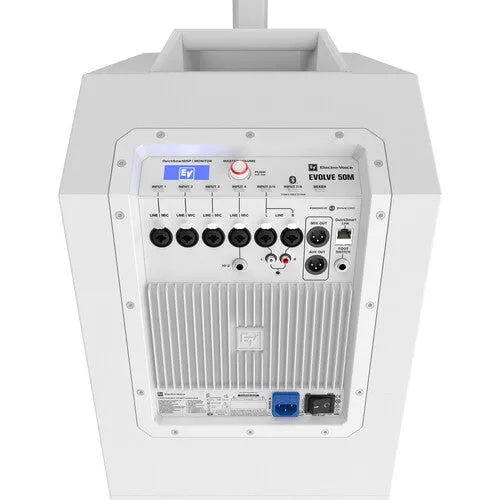

There are mic, line, and Hi-Z inputs via XLR-1/4" combo jacks, stereo RCA, and 3.5mm aux input jacks as well as XLR aux and mix outputs. The onboard DSP functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure. The Electro-Voice EVOLVE 50M subwoofer ships with a power cord.

Professional Performance

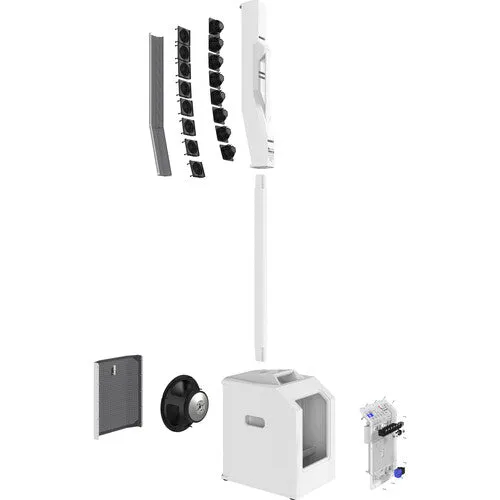

The EVOLVE 50M combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability.

Integrated Mixer

Equipped with a comprehensive and user-friendly feature set, EVOLVE 50M's "M" designation refers to its integrated fully featured, fully configurable eight-channel digital mixer. Developed in collaboration with the audio electronics engineering team at Electro-Voice's sibling brand Dynacord, the mixer has multiple inputs with professional-grade preamps and mix functions. High-resolution, low-latency Bluetooth streaming ensures excellent results for music playback or accompaniment. Independent channel aux sends and a foot switch input are also included, and a range of effects (30 presets, including chorus, delay, flange, and reverb, via two FX channels) add a myriad of options for musicians to fine-tune their tone. All the above help to reduce load-in/out and setup/teardown time—and on-stage clutter—by minimizing the need for external equipment such as a mixer and effects pedals.

QuickSmart Link

Connect two EVOLVE 50Ms via a network cable—double your mic/line inputs and mix the whole band via the QuickSmart Mobile app.

QuickSmart Link makes it easy to combine two EVOLVE 50Ms for use together with larger bands or gigs needing more inputs. Simply link the systems together via an Ethernet cable to create an uncompressed digital audio/control connection, pair both systems to a single mobile device via the QuickSmart Mobile app (available via the Apple App Store and on Google Play), and get full mix control of both systems. For applications requiring fewer inputs, but still requiring a mixer and stereo output, the EVOLVE 50M can be matched with an EVOLVE 50 via the MIX OUT XLR connector.

Wireless Control and Monitoring

Use the Electro-Voice QuickSmart Mobile app to adjust all audio, effects and mix functions via your phone or tablet
