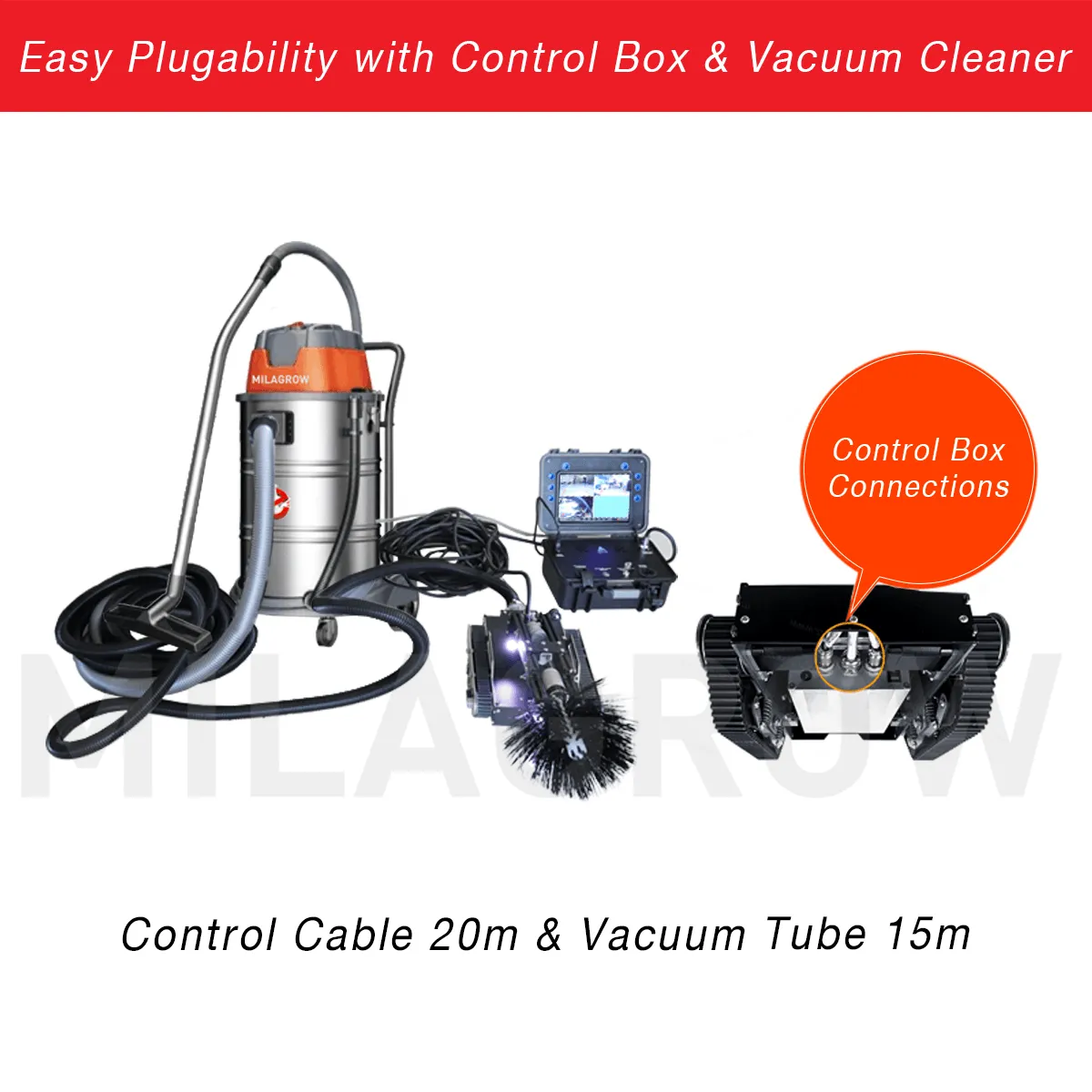

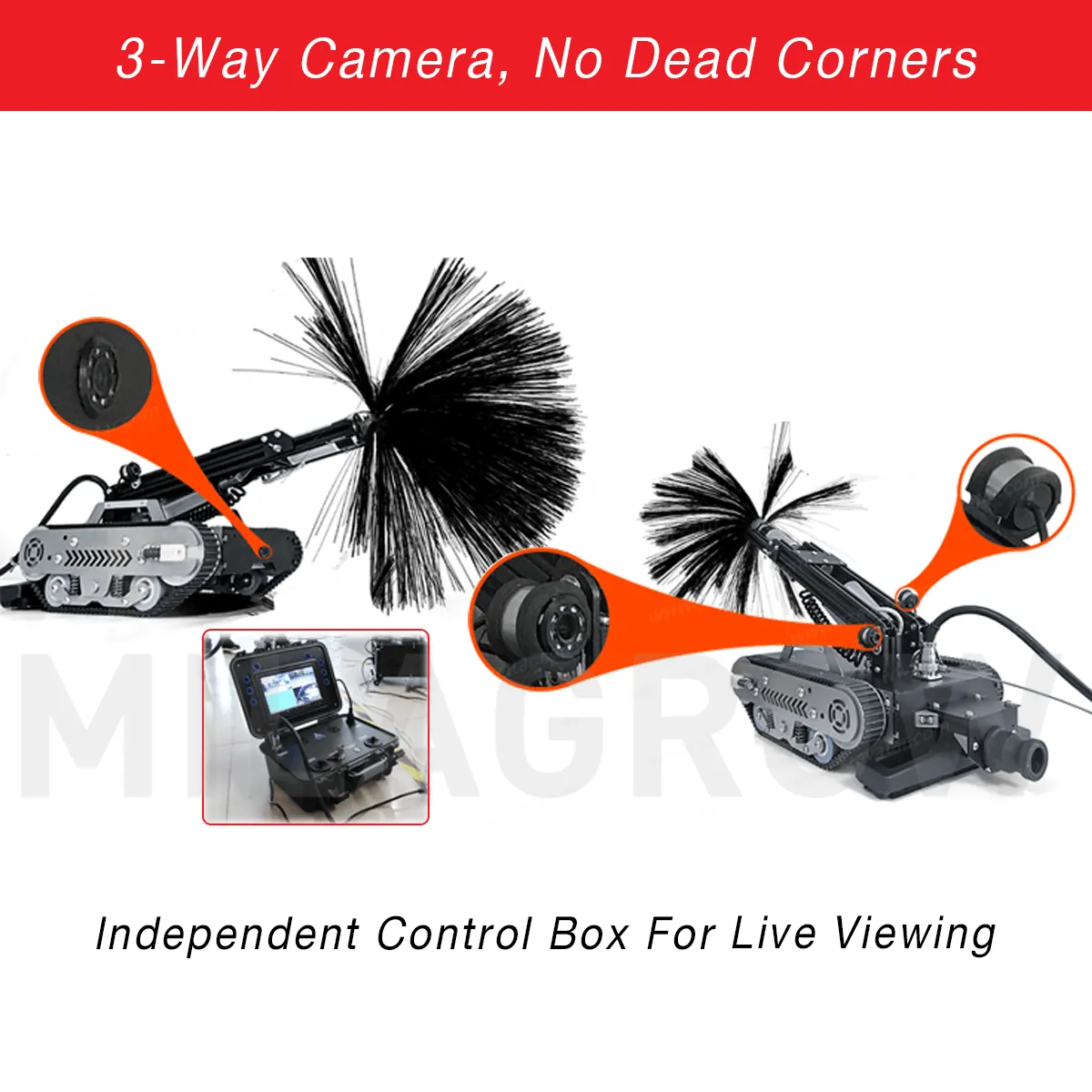

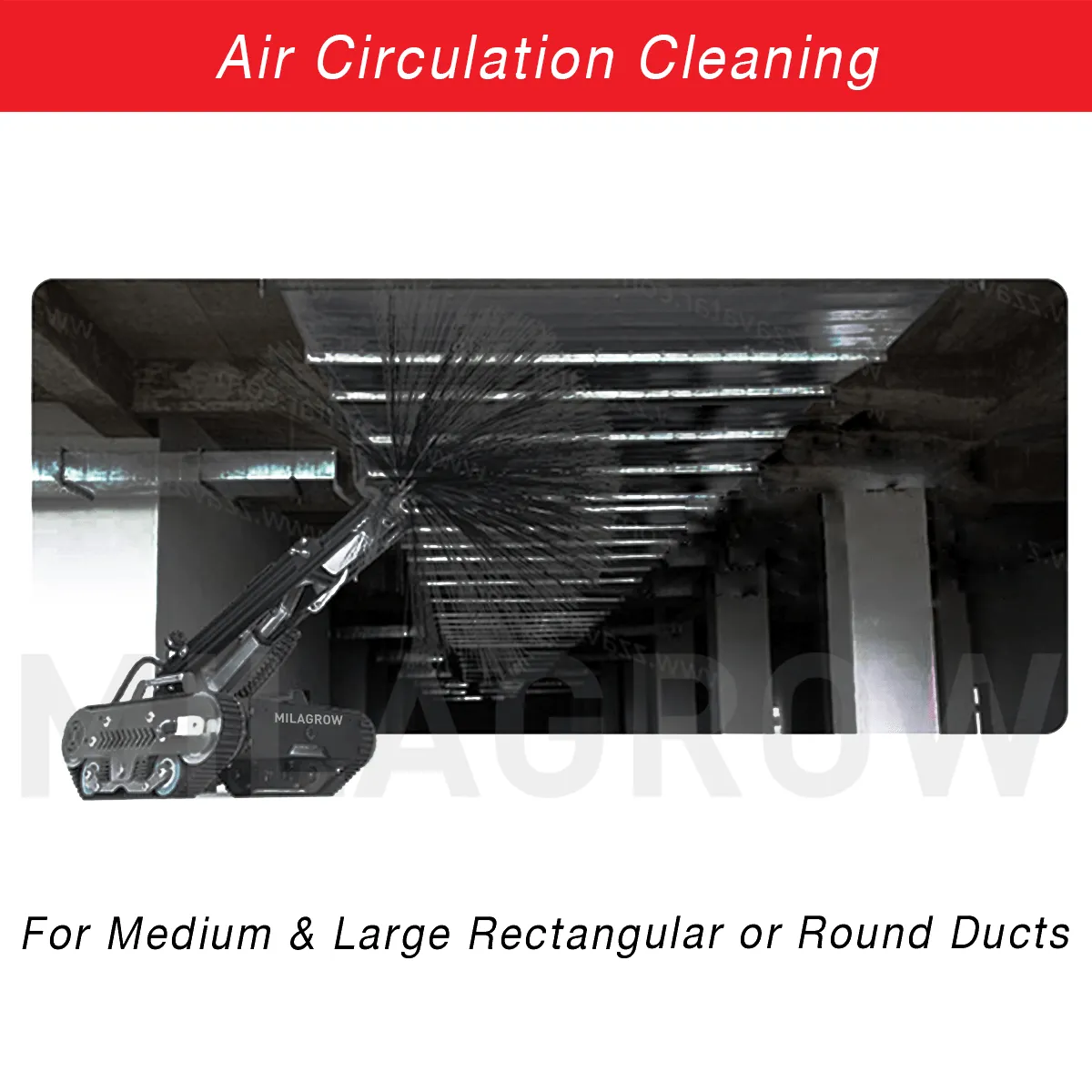

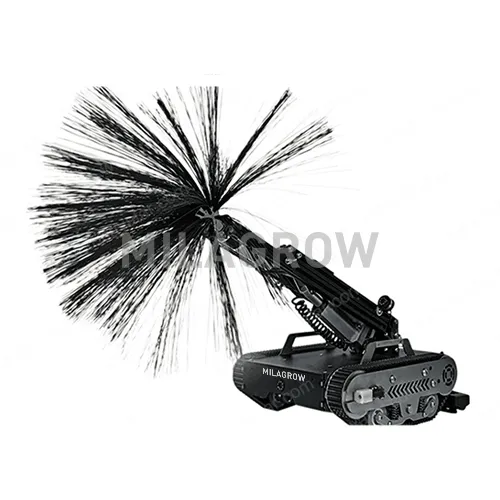

Hydra duct cleaning robot is mainly used for cleaning dust, non-oily dust, and other dirt in horizontal or round large and medium-sized rectangular ducts. Free telescopic cleaning arm, 3-Way camera, No dead corners, Different brush heads for different ducts, 360º manoeuvrability & S pattern, Easy pluggability with control box and vacuum cleaner, 30º obstacle climbing.
Features:

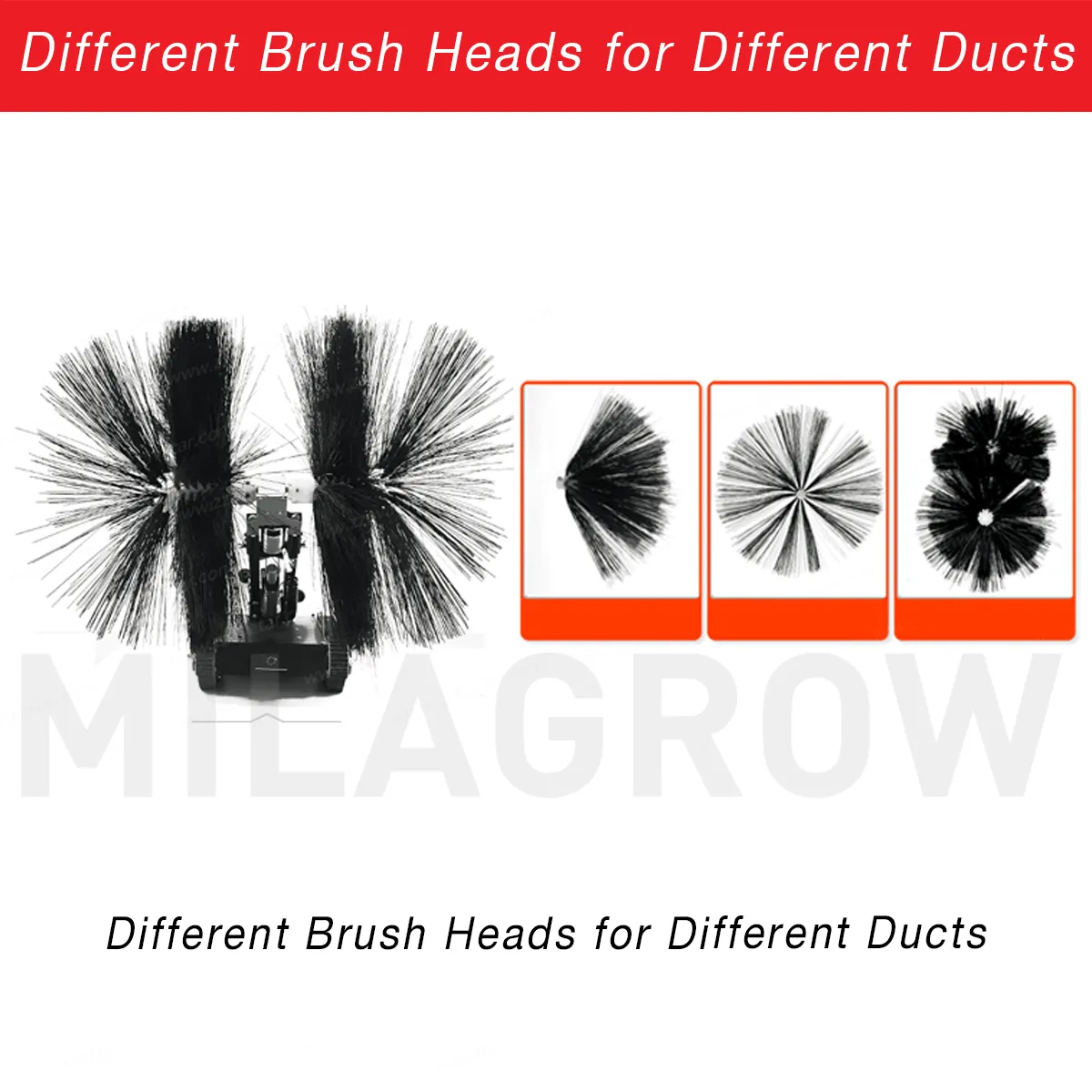

Roller brush, round brush, ball shape brush optional, ensuring no dead corner cleaning.

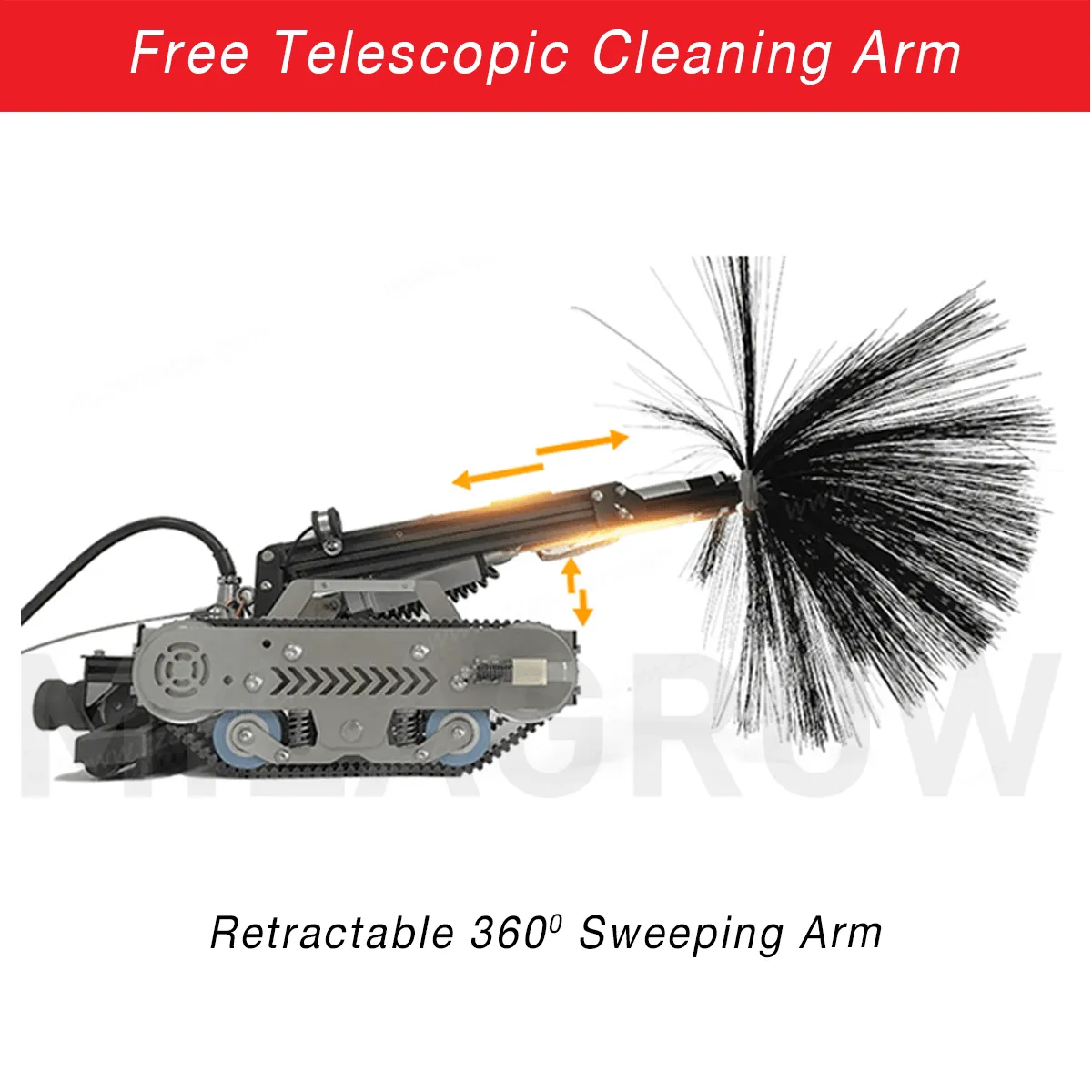

Telescopic lifting design. You can clean different heights by raising them up or down.
A high-power cleaning motor that can clean powerfully.
Professional robot platform with DC brushless high-power drive motor, greatly improving the stable working performance.
Adjustable travel speed. You can control it according to your request.

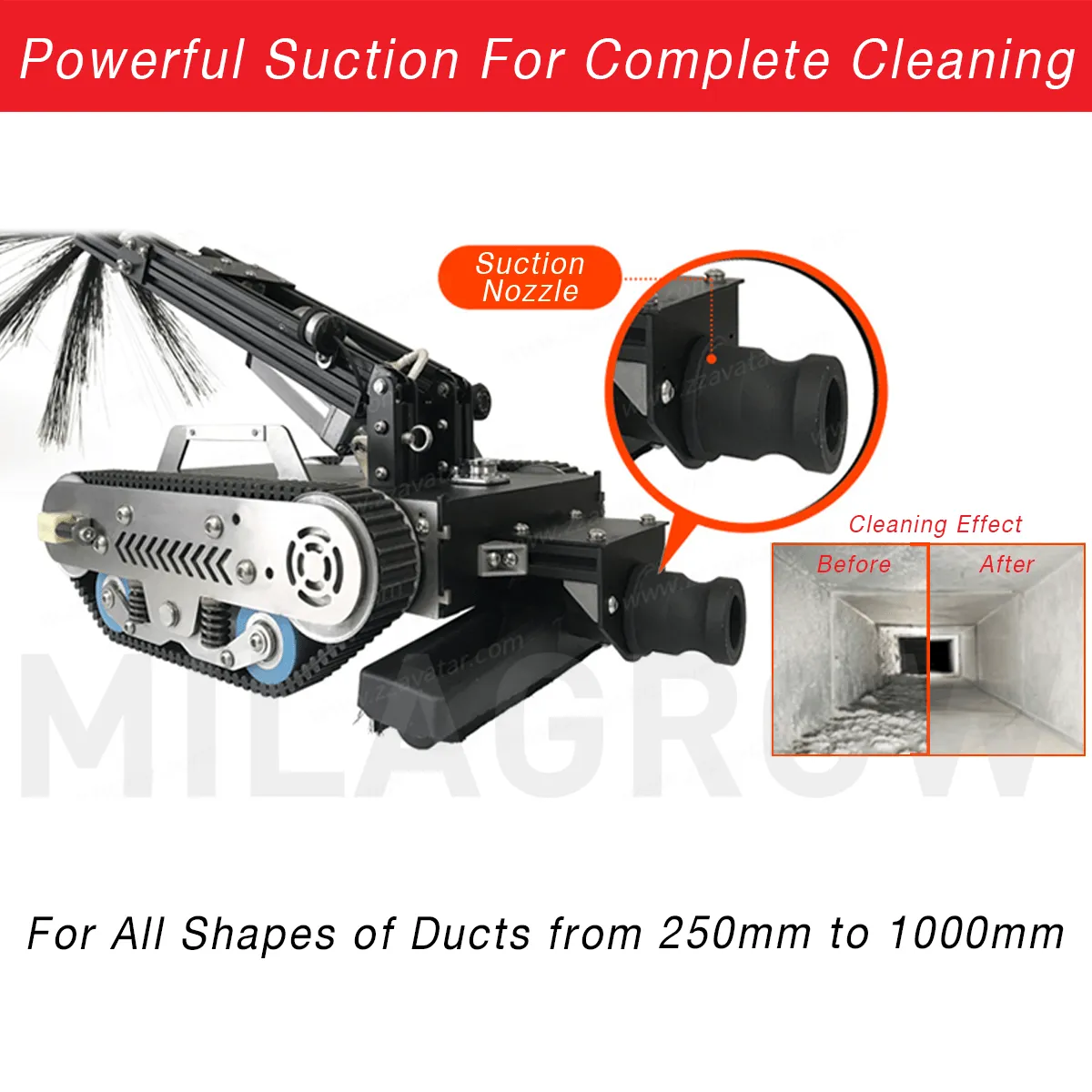

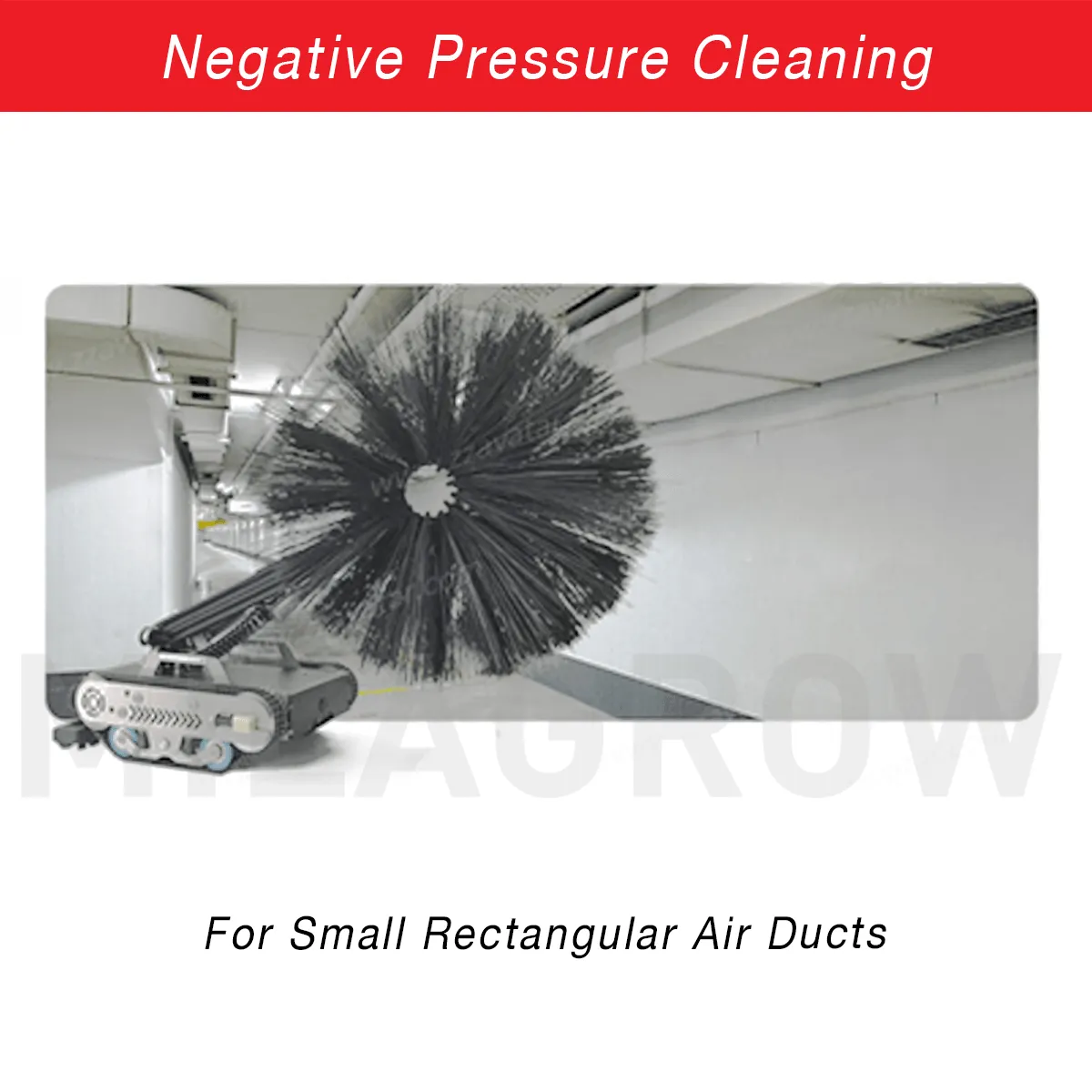

Negative pressure cleaning system. You can do the sweeping and dust collecting at the same time, saving time and improving efficiency greatly.

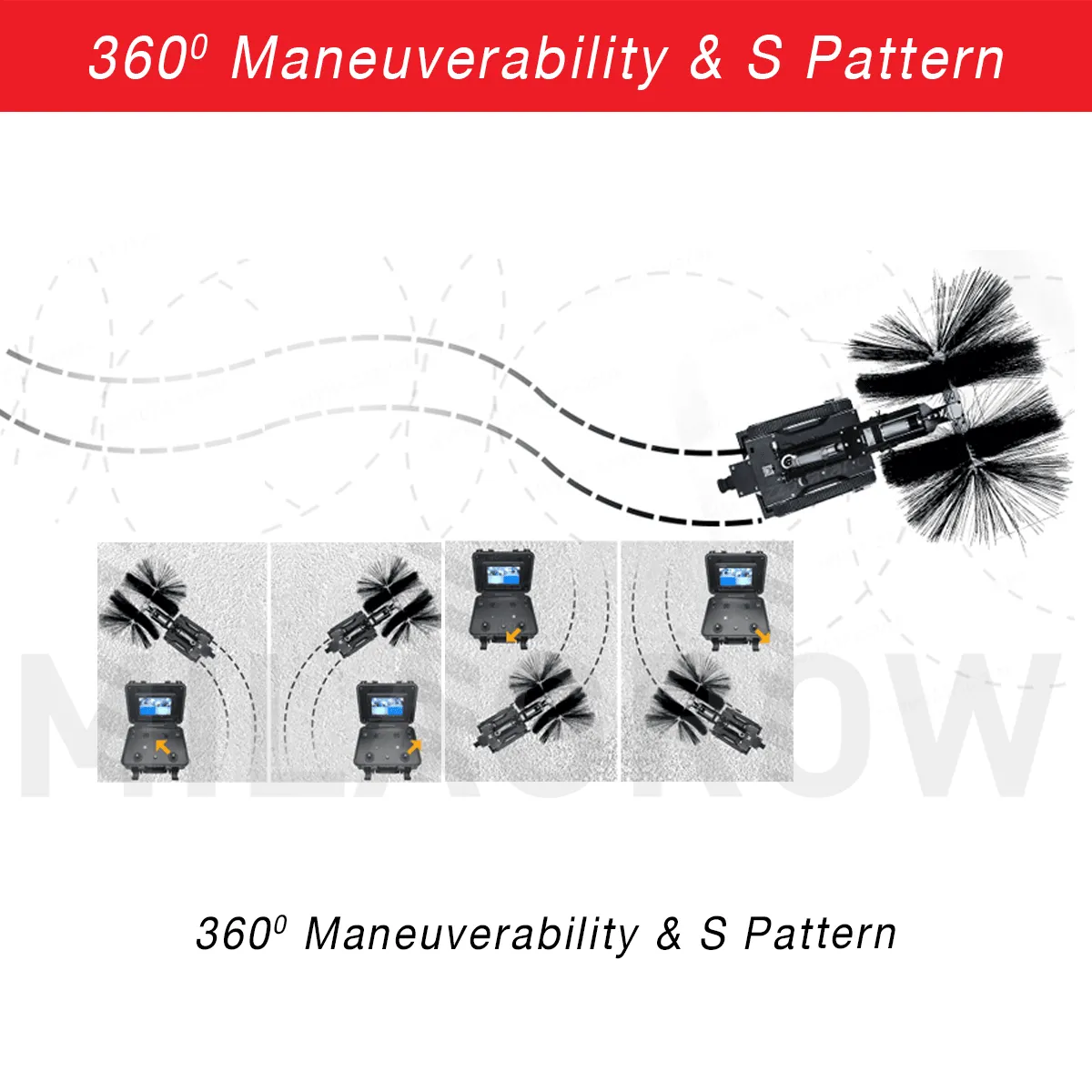

Can move in "S" pattern.
Specifications:

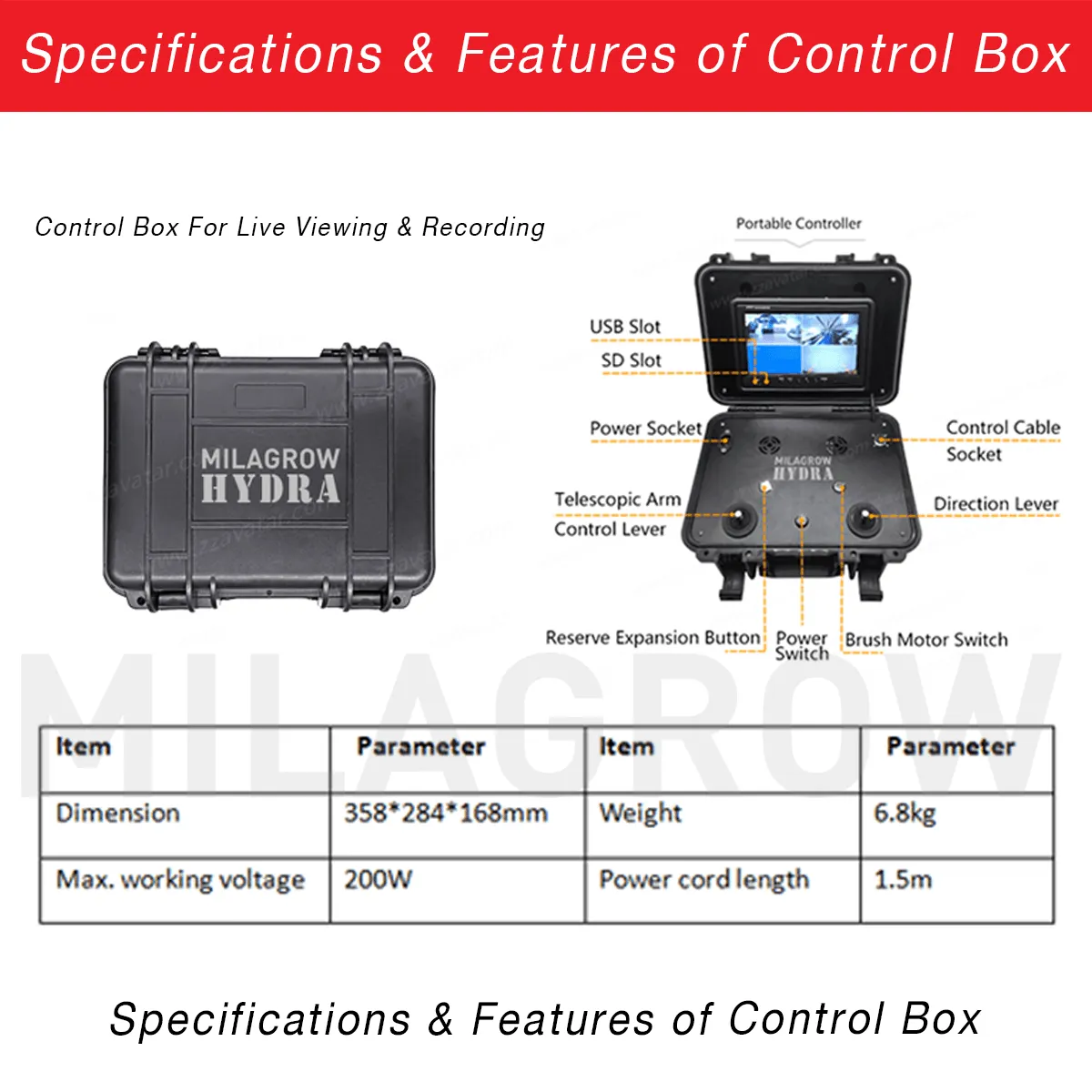

| Control Box Specifications | |
| Net weight (Kg) | 6.8kg |
| Dimensions | 358*284*168mm |
| Max. working voltage | 200W |
| Power cord length | 1.5m |
| Duct Cleaning Functions | |
| Vacuum tube length | 15m |
| Working voltage | AC100-240V |
| Motor Power for cleaning robot | 160W |
| Maximum climbing | 30 degrees |

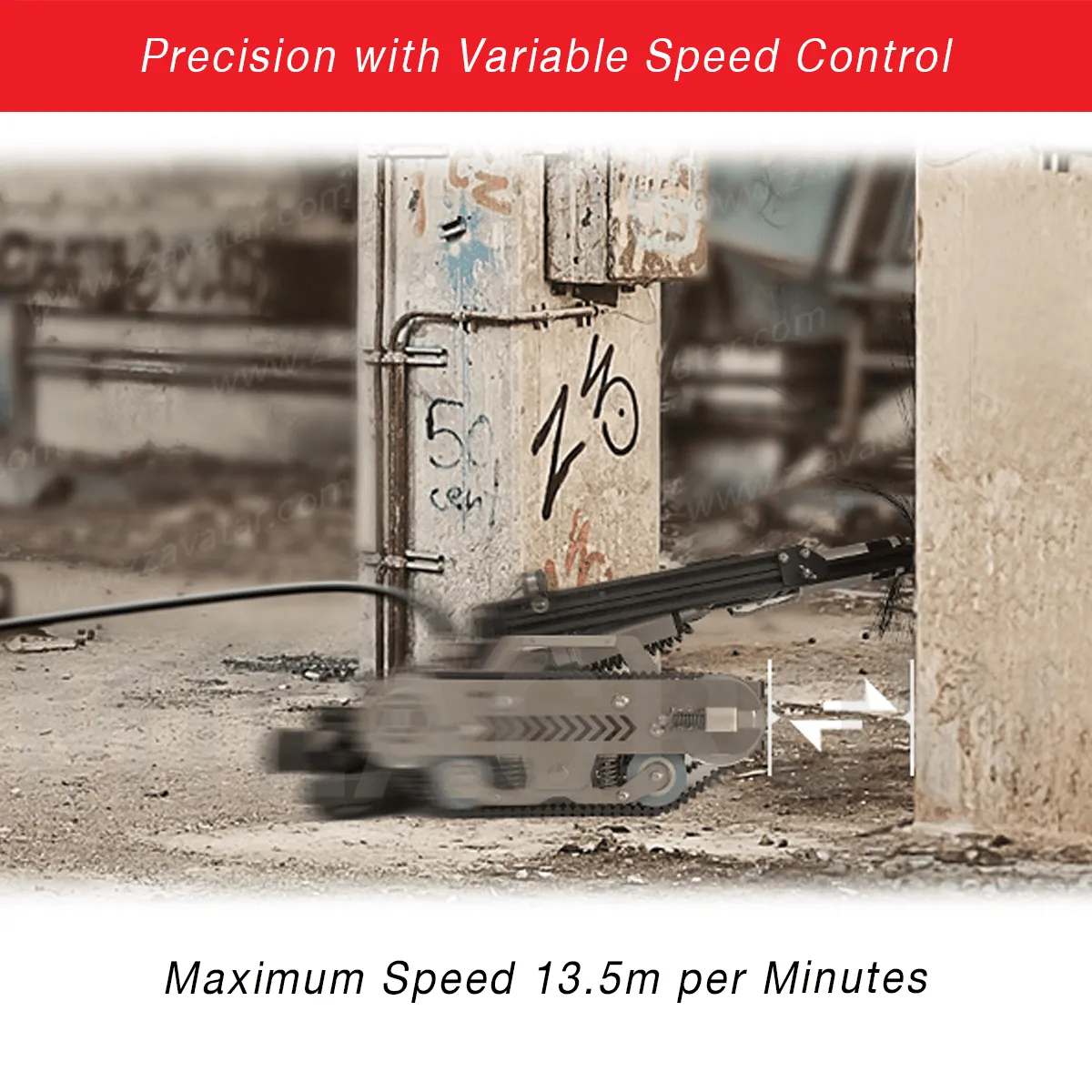

| Travel speed | 0-13.5m/min |
| Maximum obstacle | 170mm |
| Cleaning height | 250-1000mm |
| Flexible Shaft/Cable | 20m |
| Rotation Rate | 297r/min |
| Working Distance | ≤40m |
| Other Specifications | |
| Configuration | Full set include cleaning robot, control box, 20m cable |
| Type | Robot type( for large main duct) |
| Application | Round,Rectangular,Horizontal Duct |
| Body , Weight & Dimensions | |
| Dimensions (mm) | 680*320*210 |
| Gross Weight (Kg) | 38kg |

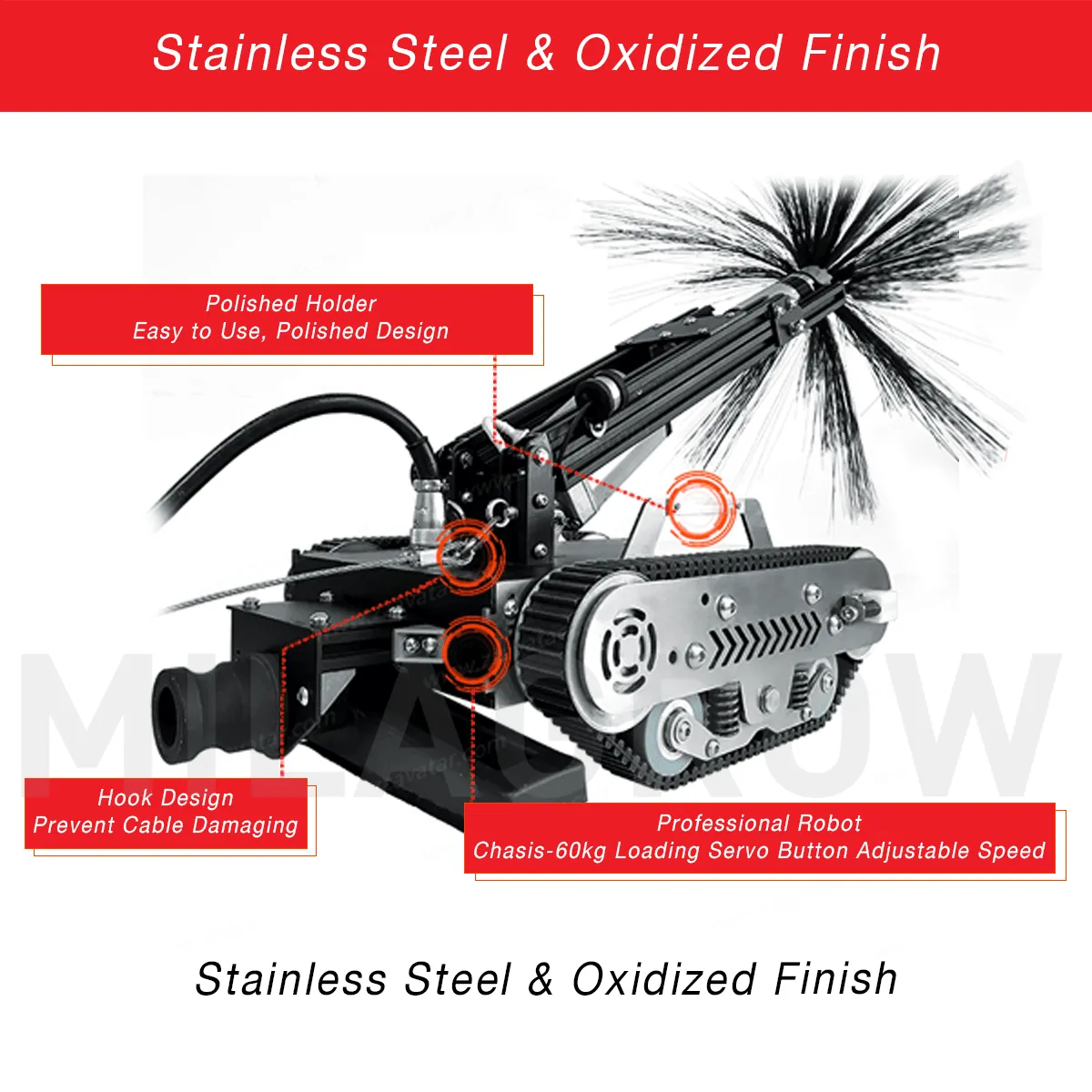

| Surface treatment | Oxidation, stainless steel |
| Host weight | 10.4kg(brush headnot included) |
| Accessories | |
| User Manual | Yes |
| Main unit (with suction port) | 1 set |
| Control box (wired control) | 1 set |
| Control cable 20m | 1 pc |
| Power cord 1.5m | 1 pc |
| Round brush 500mm | 1 pc |
| Round brush 800mm | 1 pc |
| Ball brush 300mm | 1 pc |
| Ball brush 500mm | 1 pc |
| Electric control box key | 1 pc |
| Tool kit | 1 set |
| Product Warranty | |
| Warranty | 1 Year |

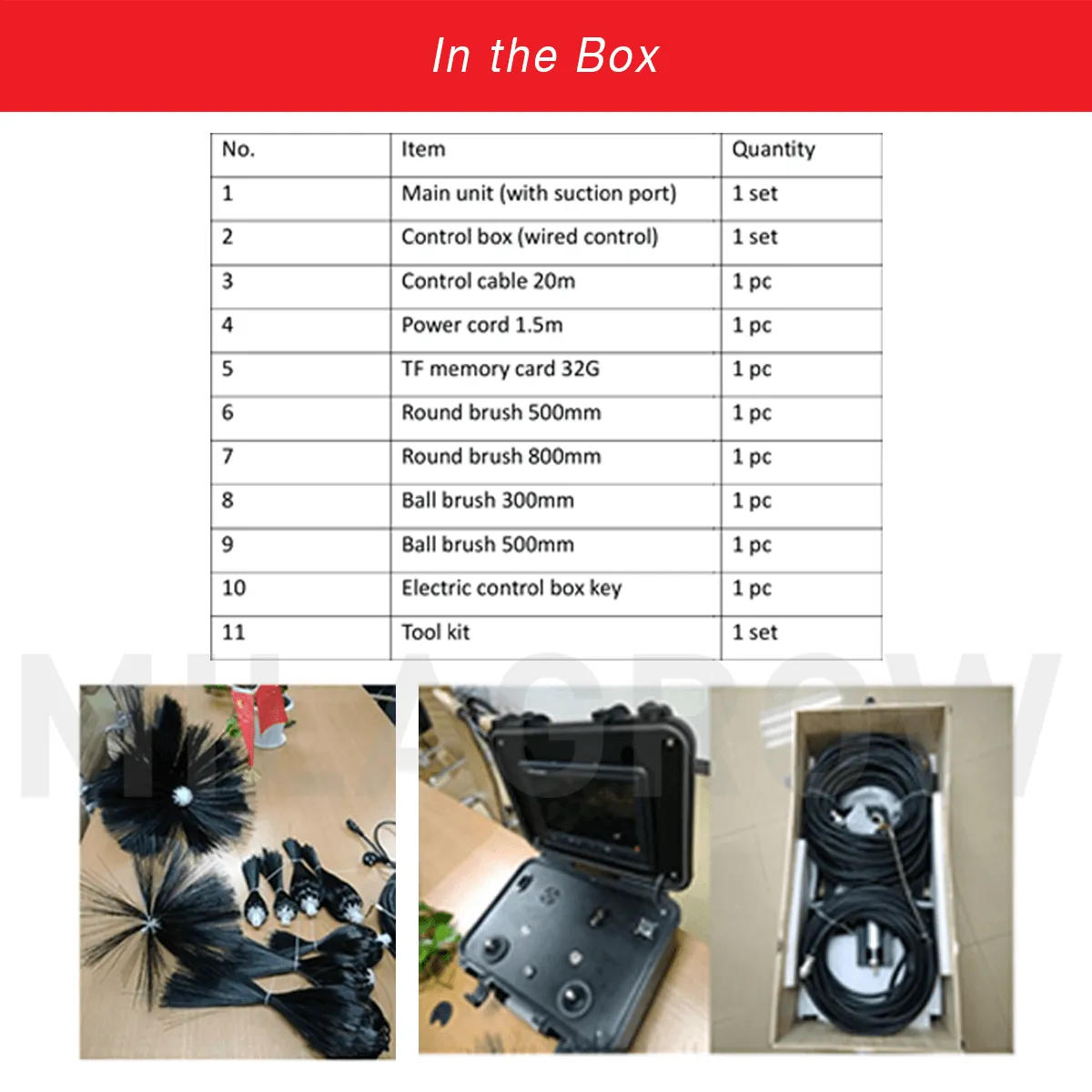

In The Box:
- Main unit (with suction port) - 1 set
- Control box (wired control) - 1 set
- Control cable 20m - 1 pc
- Power cord 1.5m - 1 pc
- TF memory card 32G - 1 pc
- Round brush 500mm - 1 pc
- Round brush 800mm - 1 pc
- Ball brush 300mm - 1 pc
- Ball brush 500mm - 1 pc
- Electric control box key - 1 pc
- Tool kit - 1 set
