Mini 3-Layer Round Robot Chassis Kit - 2WD with DC Motors

Mini 3-Layer Round Robot Chassis Kit - 2WD with DC Motors

$ 24.99

$ 0.00

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

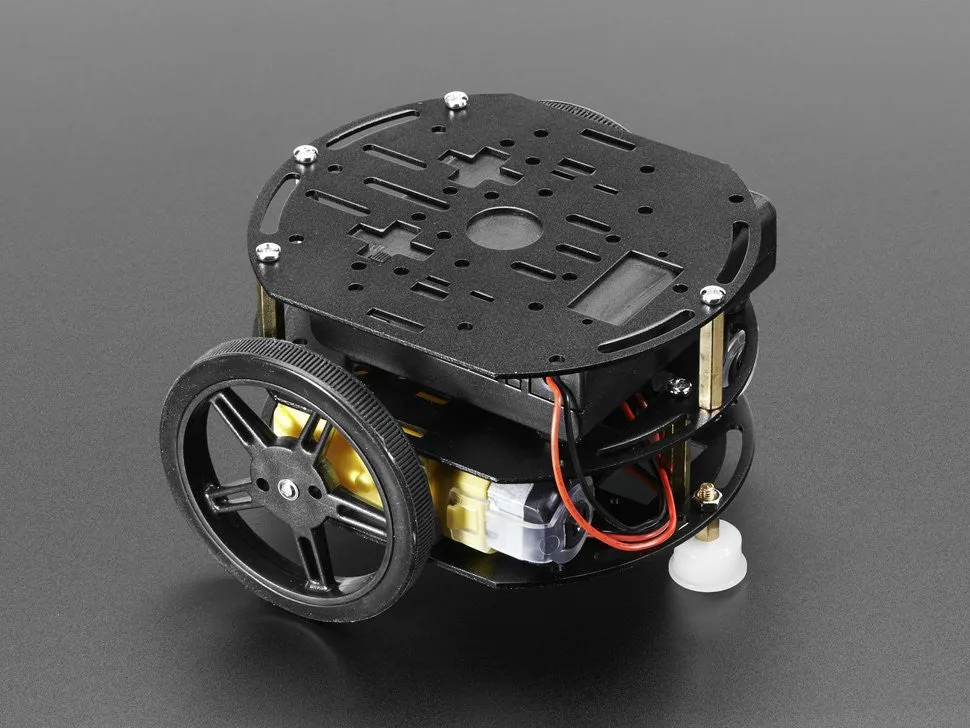

Does this guy look familiar? Of course it does! It's our Black, 3-Layer Round Robot Chassis Kit from !

This kit gives you everything you need to build the shell of a 2-wheel-drive Mobile Platform Robot! You get the metal plates that make up the chassis, two DC drive motors with matching wheels, and a caster ball for balance. You'll fill in the rest with a power supply, microcontroller board, and motor controller. The differential drive (two separately driven wheels) allows for a near zero turning radius while the high-strength aluminum alloy body plus high-quality high-speed motors make it suitable for flat indoor surfaces. It's adorably small like , but has an extra layer for more storage and comes in fashionable Adafruit black!

We of course have suggestions to run the motors like our , , , or . Basically anything that can do two bi-directional brushed DC motors at ~5V and 1.5 Amp peak. To steer the wheels, you'll need a microcontroller to toggle the motor driver like our , which we used for AdaBox002, and to power the robot (not included) which fits nicely between layer #2 and #3. But this is all up to you and your imagination!

Note: , , , and are not included! This is just the body of the mobile platform robot. Purchasing will set you up with nearly everything you need, or you can use whatever microcontroller and motor drivers you already have.

Kit includes:

  • 2x Drive Motors (drive with 3-6VDC, 200-400 mA run, 1.5A hard stall)
  • 2x Wheels
  • 1x Plastic Caster Ball
  • Anodized aluminum frames and all mounting hardware for assembly

Technical Details

Assembled Dimensions:

  • Length of Metal Plates: 100mm / 3.9"
  • Width of Car (wheels assembled): 109mm / 4.3"
  • Height (wheels assembled, 3 plates): 66mm / 2.6"
