Note: Adapter Fittings Sold Separately

• ½” Union Sweat (UFS-050S)
• ½” Union FNPT (UFS-050T)
• ½” Union Press (UFS-050P)
• ¾” Union Sweat (UFS-075S)
• ¾” Union FNPT (UFS-075T)
• ¾” Union Press (UFS-075P)

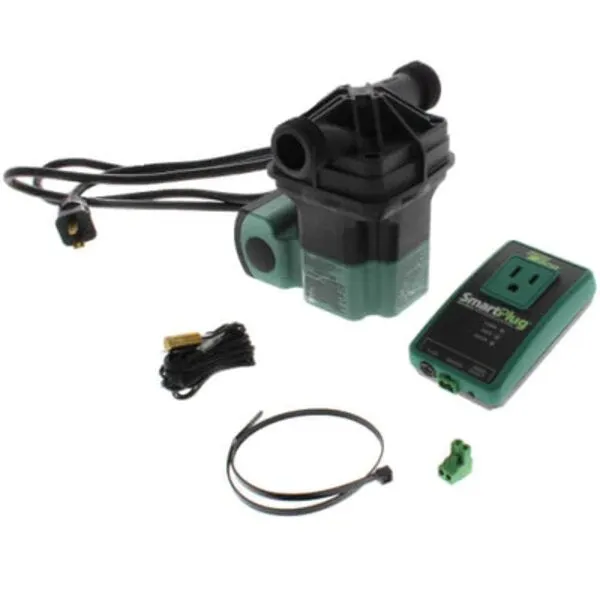

Perfect for systems with a tank water heater and dedicated hot water return line, the SmartPlus-e combines the high-efficiency of the 006e3 ECM circulator and the intelligence of the award-winning SmartPlug Instant Hot Water Control®. A one-two punch that delivers instant hot water comfort while saving energy and water – up to 12,000 gallons a year! With SureStart® automatic unblocking and air purging, you can expect years of trouble-free performance from Taco, the leader in reliability.

• Quick & easy installation
• No programming - Learns hot water usage patterns
• High-efficiency ECM motor uses up to 85% less electricity
• SureStart® is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free. No one else has this feature!
• Unmatched customer service & technical support

SmartPlug Specifications:

• Input: 120VAC, 50/60HZ, single phase, 6A
• Output: 120VAC, 50/60HZ, Single phase, 1/2 hp (limited to 6 FLA, 36LRA)
• Sensor: NTC Thermistor, 10K ohm @ 77°F, B= 3392
• Fuse: 125V, 6A, Medium Acting 5x20 mm glass, Littelfuse® p/n 0233006 mxp
• Ambient Operating Temp: 50-104°F, 10-40°C
